Hot Metal Detector (HMD) 4.0

Hot Metal Detector (HMD) 4.0

Potente y fácil de usar. Dispositivos compactos hasta 75 °C o 200 °C de temperatura ambiente (con lente y cable de fibra óptica hasta 290 °C).

El Hot Metal Detector (HMD) 4.0 ofrece nuevas características (ver a la derecha) y funciones que optimizan los procesos, reducen el esfuerzo y ahorran tiempo valioso.

Los sensores infrarrojos Proxitron siempre han sido extremadamente robustos, libres de desgaste y mantenimiento. Pero nunca antes un Detector de Metales Calientes (HMD) de Proxitron había sido tan potente, eficiente y flexible! Gracias a su configuración basada en software, el nuevo HMD puede programarse y ajustarse de muchas maneras. Maneja temperaturas de respuesta de hasta 1.000 grados centígrados, las detecta automáticamente y elimina casi por completo las influencias perturbadoras.

Nuestro Hot Metal Detector (HMD) 4.0 de un vistazo

Características de un vistazo

HMD 4.0
Response temperature from 100 up to 900 °C
Two switching outputs in one single device
6 variants of optics available
Alarm for sensor overheating or dirt
Teach and test function
Fast response time (0,3 ms / 1500 Hz)
Extremely robust and maintenance-free
diverse accessories
HMD with fibre optic cable
Response temperature from 250 up to 1000 °C
Two switching outputs in one single device
8 variants of optics available
Alarm for sensor overheating or dirt
Teach and test function
Fast response time (0,3 ms / 1500 Hz)
Extremely robust and maintenance-free
diverse accessories

Application areas

Detection of hot objects
Material tracking on roller conveyors
Control of slabs, blocks and billets position at continuous casting, torch-cutting and deburring
Material tracking on conveyors in hot areas
Strip detection at coiler
Feeding and ejection control in hot forging
Wire detection in wire drawing plants
Material detection in tube and sections mills
Material tracking in dense environment (dust and vapor)
Strip detection in processes with spraying mists
Bottle counting in glass production

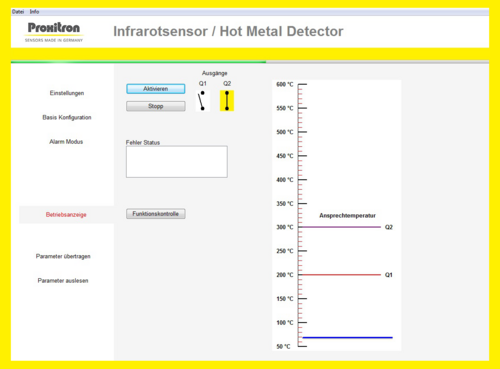

Software

Con el espíritu de la industria 4.0, hemos equipado nuestra última serie de detectores de metales calientes - la serie OX - con una interfaz de software cómoda e intuitiva. Los sensores no sólo son muy fáciles de parametrizar, controlar y monitorear a distancia, sino que también están equipados con otras funciones inteligentes.

La serie OX dispone de dos salidas de conmutación, a cada una de las cuales se pueden asignar diferentes temperaturas de respuesta en la función estándar. Además, se pueden definir diferentes temperaturas de respuesta y de desconexión con la función de offset.

La activación de la función de Jump activa el interruptor de temperatura en caso de un cambio brusco de temperatura.

Con la función de alarma se realiza la auto-monitorización del sensor. Si la función del sensor se ve amenazada por un sistema óptico muy sucio, el interruptor de temperatura cambia automáticamente al modo de alarma.

Por supuesto, un gran número de parámetros de la operación en curso son procesados, mostrados y visualizados. Todo el sistema utiliza un MODBUS para la comunicación.

Descargas

Selección de productos

6209EOXA 1016.3A GK S8 Infrared Sensor (HMD) , -10°C up to 70°C
Field of view: 1°,
Response temperature 100-600°C
10-55V DC,PNP Schließer / Öffner (parametrierbar), Air Connection, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug

Data sheet »
6209BOXA 1016.3A GK S4 Infrared Sensor (HMD) , -10°C up to 70°C
Field of view: 1°,
Response temperature 100-600°C
10-55V DC,PNP programmierbar,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6305COXA 0529.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 0,5°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar,
Housing Material: Edelstahl,Length: 200mm , Plug , with Test function

Data sheet »
6301BOXA 1029.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 1°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6302COXA 2029.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 2°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6304COXA 7029.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 7°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6307EOXA 0629.3A GK S8 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 0,5° x 15°,
Response temperature 250-900°C
10-55V DC,PNP Schließer / Öffner (parametrierbar), Air Connection, Cooling Jacket,
Housing Material: Edelstahl,Length: 200mm , Plug

Data sheet »
6306BOXA 1629.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 1x50°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6209FOXB 1016.3A GK S8 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1°,
Response temperature 100 - 600°C
10 - 55V DC,PNP Schließer / Öffner (parametrierbar), Air Connection, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug

Data sheet »
6209COXB 1016.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1°,
Response temperature 100-600°C
10-55V DC,PNP programmierbar, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6305DOXB 0529.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 0,5°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar, Cooling Jacket,
Housing Material: Edelstahl,Length: 200mm , Plug , with Test function

Data sheet »
6301DOXB 1029.3A GK S8 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1°,
Response temperature 250 – 900°C
10-55V DC,PNP Schließer / Öffner (parametrierbar), Air Connection, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug

Data sheet »
6301COXB 1029.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6302BOXB 2029.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 2°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6304DOXB 7029.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 7°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6307COXB 0629.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 0,5x15°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar, Cooling Jacket,
Housing Material: Edelstahl,Length: 200mm , Plug , with Test function

Data sheet »
6307DOXB 0629.3A GK S8 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 0,5° x 15°,
Response temperature 250 – 900 °C°C
10 - 55V DC,PNP Schließer / Öffner (parametrierbar), Air Connection, Cooling Jacket,
Housing Material: Edelstahl,Length: 200mm , Plug

Data sheet »
6306COXB 1629.3A GK S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1x50°,
Response temperature 250-900°C
10-55V DC,PNP programmierbar,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function

Data sheet »
6306DOXB 1629.3A GK S8 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1° x 50°,
Response temperature 250 – 900 °C°C
10-55V DC,PNP Schließer / Öffner (parametrierbar), Air Connection, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug

Data sheet »

Analizadores, cables de fibra óptica y óptica

7603AOXLD 6741.3A GK Infrared Sensor (HMD) , -10°C up to 70°C (with cooling 290°C)

Response temperature 400-1000°C
10-55V DC,PNP programmierbar,
Housing Material: Aluminium,Length: 125mm , Plug , with Test function
HT
Data sheet »
7604AOXLD 6726.3A GK Infrared Sensor (HMD) , -10°C up to 70°C (with cooling 290°C)

Response temperature 250-600°C
10-55V DC,PNP Schließer/Öffner (parametrierbar),
Housing Material: Aluminium,Length: 125mm , Plug , with Test function
HT
Data sheet »
6441ALLKL 2 Fiber Optic Cable , -20°C up to 290°C

Data sheet »
6436FLLK2 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6436ILLK4 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6436JLLK5 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6436MLLK6 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6436KLLK8 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6436LLLK 10 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6436QLLK15 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6436PLLK20 Fiber Optic Cable , -40°C up to 290°C

Data sheet »
6049AOAA 154 H Optics , -25°C up to 290°C
Field of view: 1,5°
Housing Material: Edelstahl
Length: 0mm
Data sheet »
6043AOAA 204 Optics , -30°C up to 150°C
Field of view: 2°
Housing Material: Edelstahl 1.4301
Length: 120mm
Data sheet »
6050AOAA 404 Optics , -30°C up to 150°C
Field of view: 4°
Housing Material: Edelstahl
Length: 120mm
Data sheet »
6047AOAA 264 Optics , -30°C up to 150°C
Field of view: 2x25°
Housing Material: Edelstahl
Length: 120mm
Data sheet »
6036OOACF 154 Optics , -30°C up to 290°C
Field of view: 1,5°
Housing Material: Edelstahl
Length: 115mm
Data sheet »
6036ROACF 154H Optics , -30°C up to 290°C
Field of view: 1,5°
Housing Material: Edelstahl
Length: 115mm
Data sheet »
6036KOACF 204 Optics , -30°C up to 290°C
Field of view: 2°
Housing Material: Edelstahl
Length: 85mm
Data sheet »
6036LOACF 704 Optics , -30°C up to 290°C
Field of view: 7°
Housing Material: Edelstahl
Length: 85mm
Data sheet »

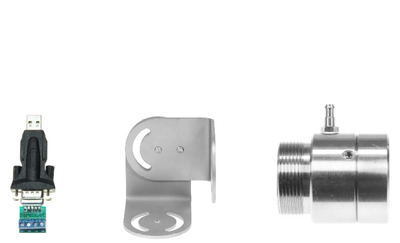

Extensive range of accessories

Connection cables

2 m connection cable for OKA/B, ST043/4-2H, art.-no. 9844R
2 m connection cable for OXA/B, ST043/5-2H, art.-no. 9850R
5 m connection cable for OXA/B, ST043/5-5H, art.-no. 9844V

Datesheet >>

Adapter for cable protection

Installation of cable protection screwing, for optical sensors with 3/4“ thread:

HG 2, art.-no.: 9855I

Datasheet >>

Mounting bracket

Stainless steel mounting base for optical sensors:

Accesorio para burbujas de aire

Accesorio de soplado para sensores ópticos:

Protection tubes

Protection tube for OL 34:

Datasheet >>

Tubo

Tube for optical laser sensors with air blow attachment:

Laser pilot light

Laser pilot light attachment for optical sensors with M40 housing:

Are you looking for a reliable HMD Sensor for use in your application?

Write to us by email at sales•@•proxitron.de, use our contact form or call us on 04121 2621-0.
