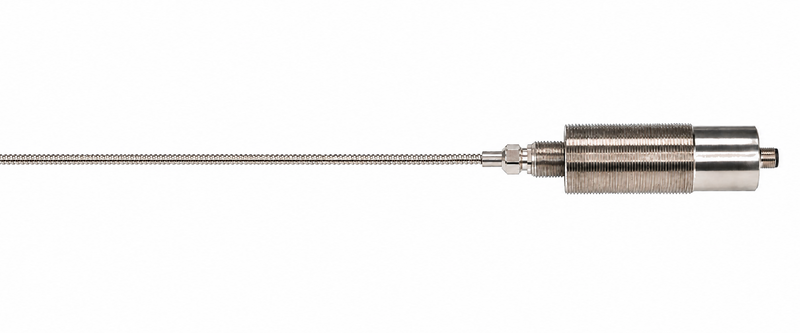

Proxitron M40 series through-beam photoelectric sensors with fiber optic connection reliably detect hot and cold objects in high ambient temperatures. Their compact design makes them particularly suitable for confined installation spaces.
Fiber optic cables in various lengths and optics for different temperature ranges allow the system to be adapted to different operating conditions. The long sensing range provides a substantial performance reserve, even in demanding environments.
The through-beam photoelectric sensor can be configured for each application using the software. Alarm functions provide early warnings of contamination and excessive temperature. A wide range of accessories offers further options for mounting, alignment and system protection.
Our infrared through-beam photoelectric sensors with fiber optic connection
in a compact M40 housing at a glance
Application areas
- Detection of hot and cold objects
- Material detection at industrial furnaces
- Monitoring of furnace inlets and outlets
- Material monitoring in steelworks and rolling mills
- Detection of pipes, slabs and steel profiles
- Object detection in forging and heat treatment plants
- Monitoring of conveyor systems in hot areas
- Jam detection and material flow monitoring
- Detection in the presence of dust, steam, fog or water spray
- Applications with limited installation space
- High-speed counting and detection tasks
Benefits
✓ Detection of hot and cold objects
✓ Fibre optic cables for ambient temperatures up to 290 °C
✓ Optics suitable for temperatures up to 600 °C on the lens side
✓ Fibre optic cables available in lengths from 1 to 20 m
✓ Sensing range up to 250 m with LALS 600.2 S4
✓ Compact M40 stainless steel housing
✓ Three freely configurable switching outputs
✓ Teach-in and test function
✓ Alarm for contamination and overtemperature
✓ Configuration via software
✓ RS-485 interface with MODBUS RTU
✓ Fast response time of max. 0.5 ms
✓ Switching frequency up to 1,000 Hz
✓ Extensive range of mounting, alignment and protective accessories
5074ALALS 600.2 S4 Einweg-Lichtschranke für Lichtleitkabel LLK, Transmitter, -25°C up to 70°C
Range: mit LSA/LSB 600 -> 400 m, mit LXSLS 600 -> 250m,
10 – 30V DC, Housing Material: Edelstahl,Length: 108mm, Ø40mm , Plug
Data sheet »5075ALXSLS 600.2A GV S8 Einweg-Lichtschranke für Lichtleitkabel LLK, Receiver, -25°C up to 70°C
Range: mit LXAA/LXAB 600 ->750 m , mit LALS 600 -> 250m,
10 - 30V DC, Housing Material: Edelstahl,Length: 108mm, Ø40mm , Plug
Data sheet »
Various optics for devices with fibre optic cables are also available to ensure optimal adaptation to the respective temperature range and detection distance. Matching fibre optic cables in various lengths provide a flexible connection between the optics and the sensor.
For further accessories, please refer to the datasheets for LALS 600.2 S4 and LXSLS 600.2A GV S8.
Frequently asked questions about the M40 single-beam photoelectric sensor with fibre-optic connection
What temperatures is the M40 through-beam sensor suitable for?
The transmitter and receiver of the M40 through-beam sensor are designed for ambient temperatures from −25 to +70 °C. Using a fibre optic cable allows the sensor electronics to be installed outside the hot zone. Depending on the version, the matching fibre optic cables can be used at temperatures up to 290 °C, and the optics at temperatures up to 600 °C on the lens side.
What range does the through-beam sensor achieve?
The system comprising the LALS 600.2 S4 transmitter and the LXSLS 600.2A GV S8 receiver achieves a range of up to 250 m. The actual usable range depends, among other factors, on the fibre optic cables and optics used, their alignment and the environmental conditions.
When is a through-beam sensor with a fibre optic connection used?
A through-beam sensor with a fibre optic connection is used when hot or cold objects need to be detected reliably under demanding environmental conditions. It is particularly suitable for areas with high temperatures, intense radiant heat or confined installation spaces. Typical applications include material detection at industrial furnaces and monitoring tubes, slabs and steel sections in steelworks and rolling mills.
Which fibre optic cables and optics are suitable?
Suitable components include Proxitron fibre optic cables and optics designed for devices with a fibre optic connection. Fibre optic cables are available in various lengths and temperature ratings. The appropriate optics are selected according to the temperature at the detection point, the required detection distance and the installation conditions. For reliable detection, the fibre optic cable, optics, transmitter and receiver must be matched to one another and to the specific application
Write to us by email at sales@proxitron.de, use our contact form or call us on 04121 2621-0.
Our team will be pleased to advise and provide you with all the information you need!
