LASER Trough-Beam Light Barriers

LASER Trough-Beam Light Barriers up to +50 °C

Proxitron LASER Trough-Beam Light Barriers for detecting cold and hot material.

Proxitron Laser Light Barrier up to 50 °C

Proxitron offers a wide range of Light Barriers for a variety of applications and environments.

Our LASER Through-Beam Light Barriers can be used at ambient temperatures of up to +50 °C. They also offer the advantage of a long range of up to 2500 m, enabling the detection of hot and cold objects. The ultimate solution for detecting small objects or contours when high accuracy and reproducibility are required.

The sensors can be adapted to a wide range of application conditions using software and Teach-In.

Product selection

5067BLLAA 600.3 S4 Laser Einweg-Lichtschranke , Transmitter , -25°C up to 50°C
Range: 2500m,
12 - 55V DC, Housing Material: Edelstahl,Length: 173mm , Ø57mm , Plug ,

Data sheet »
5068BLLXSA 600.3A GV S8 Laser Einweg-Lichtschranke , Receiver , -25°C up to 70°C
Range: 2500m,
12 - 55V DC, Housing Material: Edelstahl,Length: 171mm , Ø57mm , Plug ,

Data sheet »

Further accessories for our thru-beam light barriers >>

Laser Light Barriers for a higher ambient temperature or compact design

up to 200 °C

Compact M40 housing

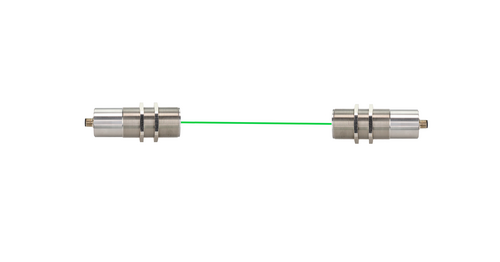

Proxitron Laser Trough-Beam Light Barrier M40 compact

Are you looking for a reliable thru-beam light barrier for use in your application?

Write to us by email at sales•@•proxitron.de, use our contact form or call us on 04121 2621-0.
Our team will be pleased to advise and provide you with all the information you need!
