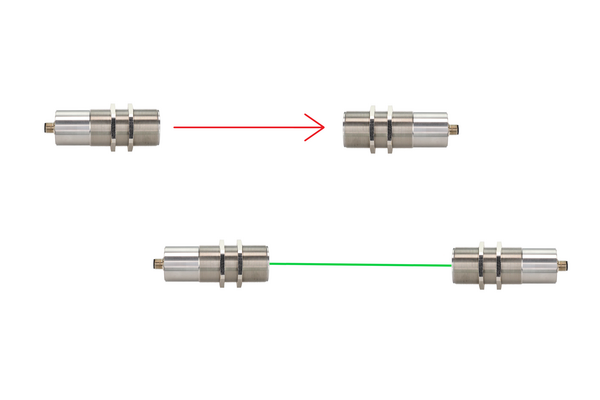

Laser Light Barrier

Proxitron LLX series laser light barriers offer a wide range of functions and an extremely long range, which enables the detection of hot and cold objects.

When high precision and reproducibility are required, proxitron laser light barriers are the ultimate solution for detecting small objects or contours.

The laser light barriers can be easily adapted to a wide range of application conditions using software or teach-in. The adjustable switch-on and switch-off delay also offers a wide range of options. The optical adjustment tool simplifies installation if a large distance between the laser light barrier is required.

The robust design guarantees safe operation even in the case of vibration, and the temperature-resistant glass optics withstand radiant heat. Designs with a cooling jacket are available for higher ambient temperatures, and an alarm function signal is emitted in the event of soiling and overheating.

Our laser light barrier overview

Sus ventajas

LASER Class 2 can be used without additional protective action
Individual settings for three switching outputs
Alarm for excessive temperature or pollution
Tech and test function
extremely fast (0,5 ms/1000 Hz)
robust and maintenance-free
wide range of accessories

Application areas

detection of hot and cold objects
material tracking in drying ovens
Detect material edges with high accuracy
Detection of small objects
jam detection
prevention of obstruction material

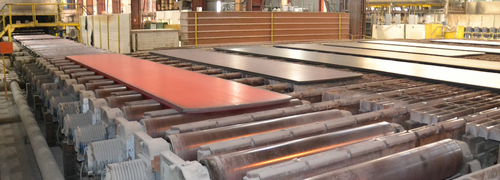

material tracking on conveyors in hot areas
feeding control in high temperature processes
vehicle height monitoring in outdoor conditions

Download

PDF herunterladen Light grid

Product selection

5067BLLAA 600.3 S4 Laser Einweg-Lichtschranke , Transmitter , -25°C up to 50°C
Range: 2500m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 173mm , Ø57mm , Plug ,

Data sheet »
5068BLLXSA 600.3A GV S8 Laser Einweg-Lichtschranke , Receiver , -25°C up to 70°C
Range: 2500m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 171mm , Ø57mm , Plug ,

Data sheet »
5067ALLAB 600.3 S4 Laser Einweg-Lichtschranke , Transmitter , -25°C up to 200°C
Range: 2500m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 173mm , Ø76mm , Plug , with Test function ,

Data sheet »
5068ALLXSB 600.3A GV S8 Laser Einweg-Lichtschranke , Receiver , -25°C up to 200°C
Range: 2500mm,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug ,

Data sheet »
5069BLLXRB 600.3A GV S8 Retro-reflective Sensor , , -25°C up to 200°C
Range: 200m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug ,

Data sheet »
5069ALLXRA 600.3A GV S8 Retro-reflective Sensor , , -25°C up to 0°C
Range: 200m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø57mm , Plug , * bezogen auf Reflektor ORL 01 51 x 61 mm

Data sheet »

Are you looking for a reliable laser light barrier for use in your application?

Write to us by email at sales•@•proxitron.de, use our contact form or call us on 04121 2621-0.
Our team will be pleased to advise and provide you with all the information you need!
