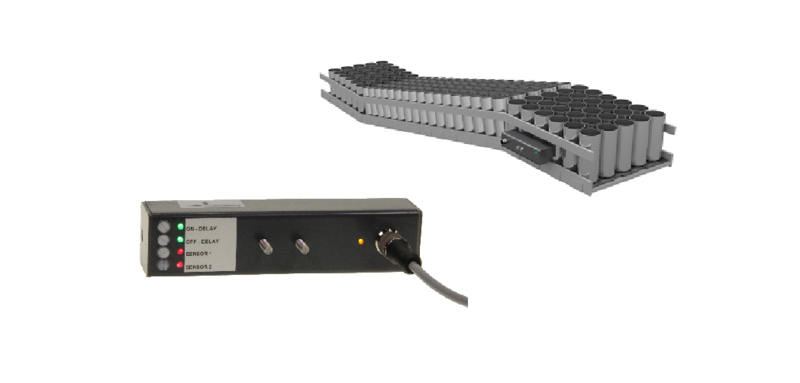

Can Line Sensors DLU

For the production and filling of cans

Can line sensors of the type DLU are used along the conveyor line to detect aluminium or tinplate cans. The can line sensor has two sensor elements which are matched to each other. These enable the detection of all common aluminium and tinplate cans.

The advantage of this sensor is its adaptability to the process. Among other things it is possible to detect a can jam or to fade out gaps between cans. Due to its numerous functions, the DLU is the optimal sensor for feeding from the cup press to the bodymaker, to the washer, feeder, dryer, coating unit, printing and filling line and the downstream process steps, right up to packaging.

Functions

  • Can detection

  • Motion detection

  • Speed control

  • Jam detection

  • Gap detection

  • Gap suppression

Your advantages

  • Can jam, can direction and can speed control

  • Adjustable can type

  • Can diameter from 53 mm

  • Aluminium and tinplate cans

  • Ambient temperature 0°C up to +50°C

  • Switch on/off delay adjustable approx. 0 - 10s

  • No second sensor is required

Overview accessories (not included in the delivery scope)

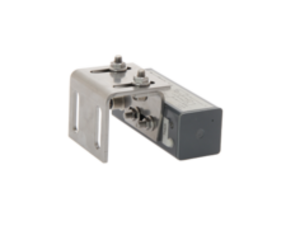

Select the HM 7 angle bracket as an accessory. It enables simple mounting of the DLU can line sensor, in combination with the HM 8 or HM 9 mounting bracket (various sizes). An adaptation to existing Sencon mounting brackets is possible.

Mounting bracket HM 9

HM 9, Article-No. 9816I

Mounting bracket, adjustable. Socket line mounting possible with mounting angle HM 9

HM 7, Article No. 9816G

Angled connector S4 (M12 x 1 A) can be confectioned for cable 4 x 0.75 mm²

ST 040, Article-No. 9841A

Straight connector S4 (M12 x 1 A) can be confectioned for cable 4 x 0.75 mm²

ST 040 G, Article-No. 9842D

Connecting cable with angle connector S4 (M12 x 1 A) 2 m PVC cable 4 x 0.25 mm²

ST 041/4-2, Article-No. 9841D

Connecting cable with angle connector S4 (M12 x 1 A) 5 m PVC cable 4 x 0.25 mm²

ST 041/4-5, Article-No. 9841E

Connection cable with straight coupling S4 (M12 x 1 A) 5 m PVC cable 4 x 0.25 mm²

ST 043/4-5, Article-No. 9841T

Any question about our Can Line Sensor?

Please contact us and use our contact form, send us an email to sales@proxitron.de or call us at +49 4121 2621-0.

We are pleased to help with your application!
